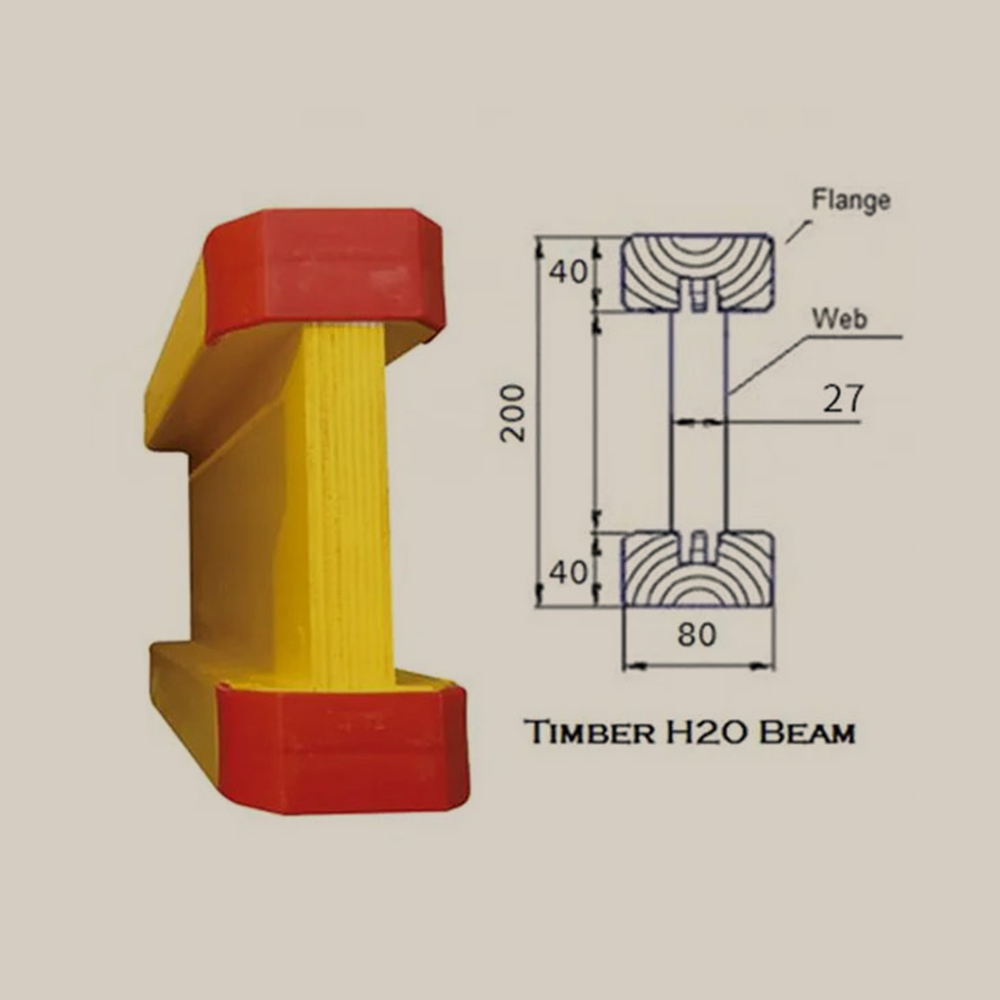

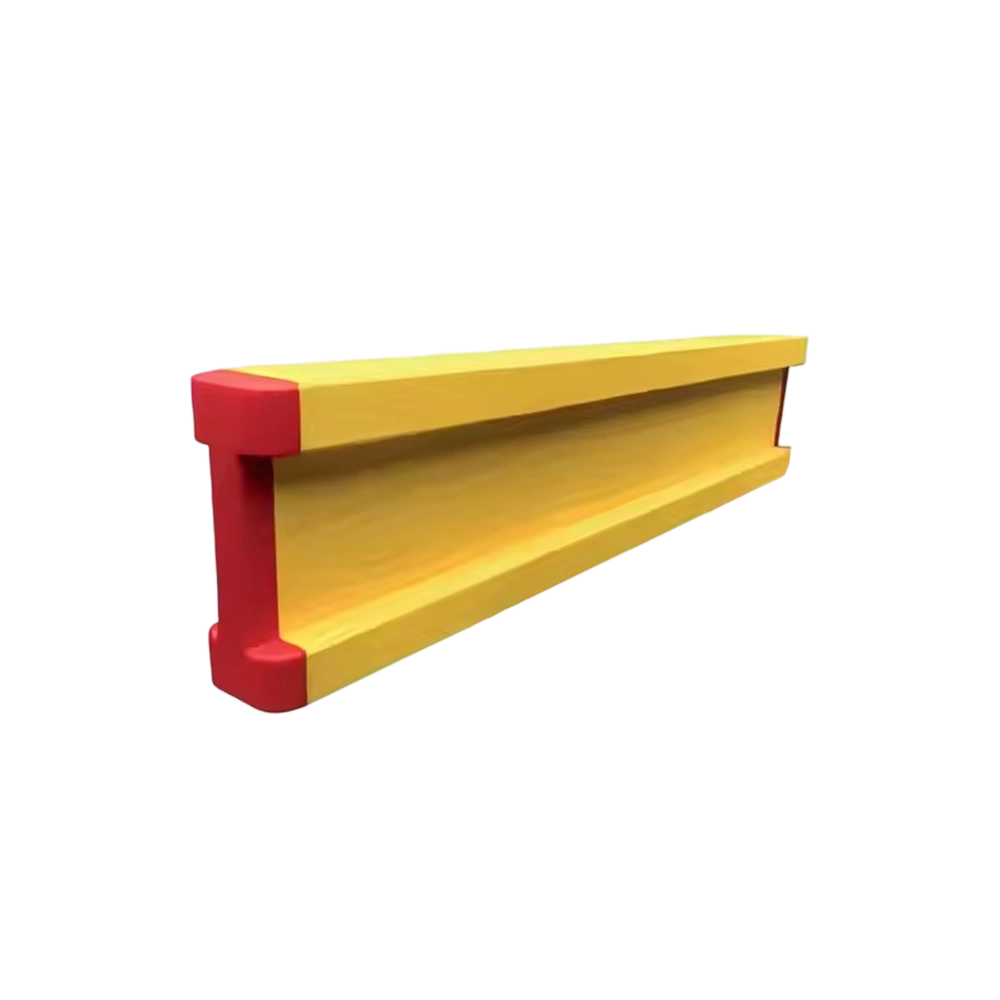

H-16/20/24 Beam

Core Materials: Chinese Fir, New Zealand Pine, or Finland Spruce (customizable).

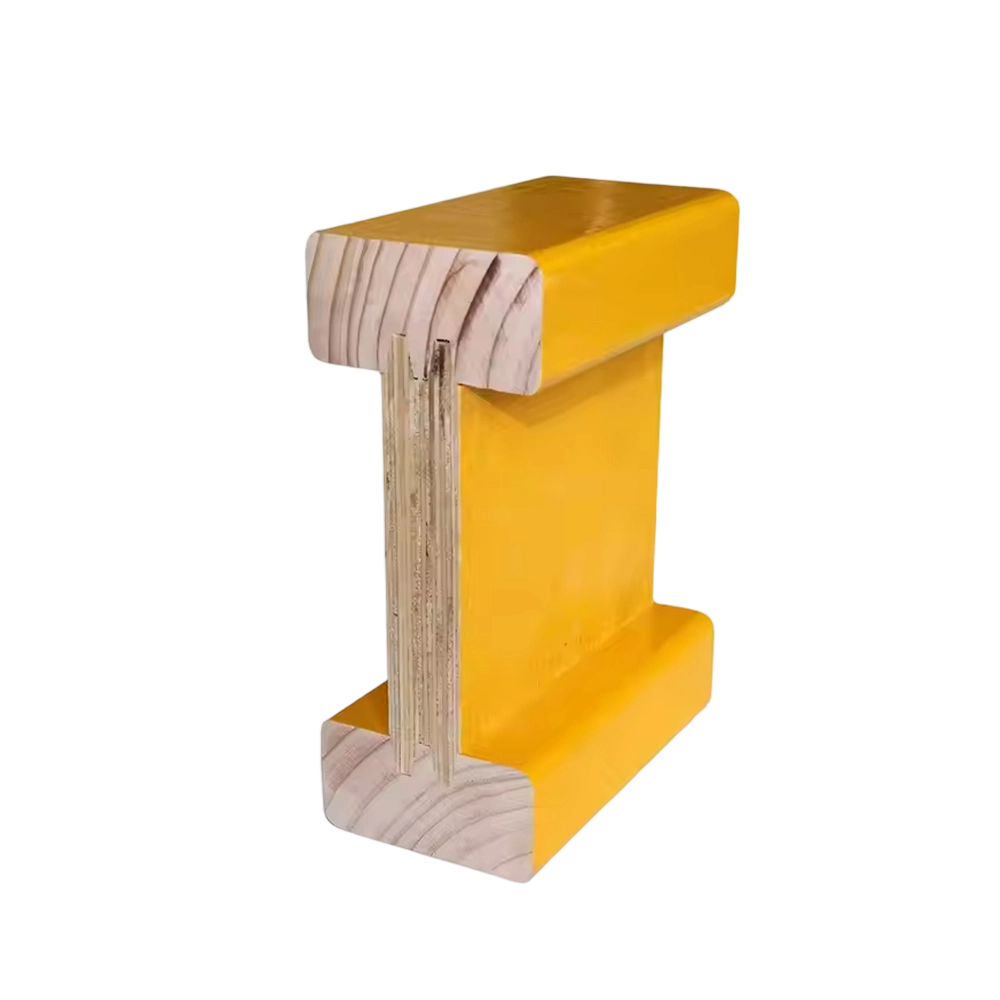

Structural Composition:

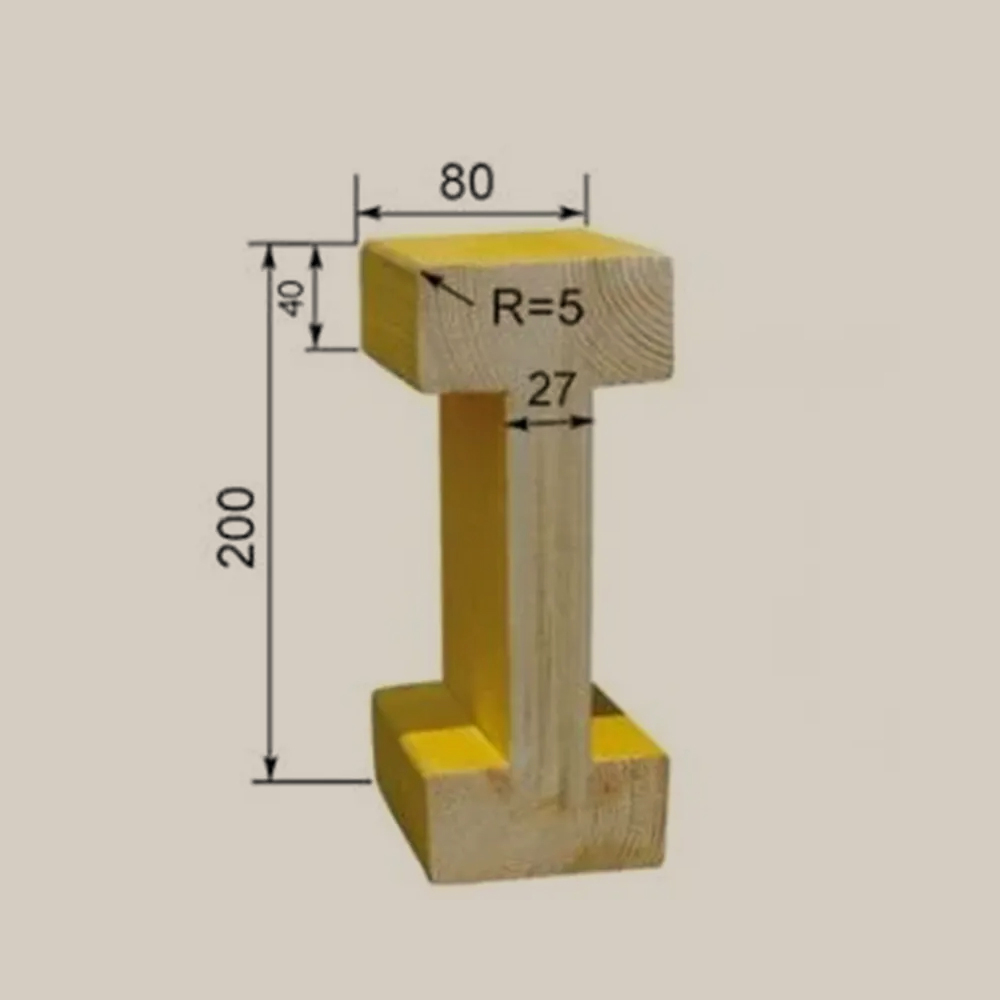

External Frame: 80 × 40 mm solid pine/fir, milled and calibrated for seamless core integration.

Core Options: Timber/LVL/Plywood (selective layering).

Surface Treatment: Water-repellent paint coating.

Technical Specifications:

Gluing: Phenolic glue (EN 30 certified for structural wood components).

Weight: 5–6 kg/m (approx.).

Length Range: 1.2M–7.2M (cuttable to any length post-assembly).

Performance Advantage:

Precision-milled joints enable modular flexibility and reusability.

H20/H20+ variants support variable cutting without structural compromise.

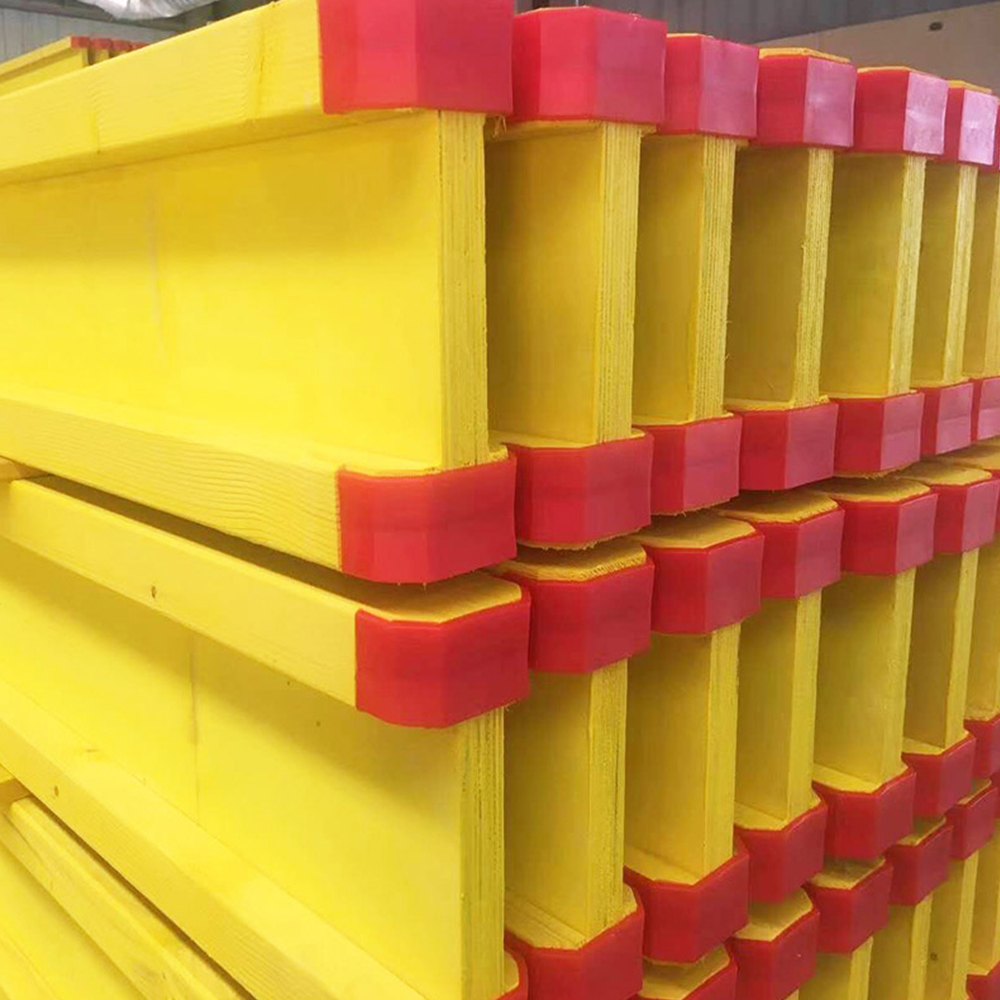

Packaging & Quantity:

105 pcs per package; ~5000 linear meters per 40HQ container.
