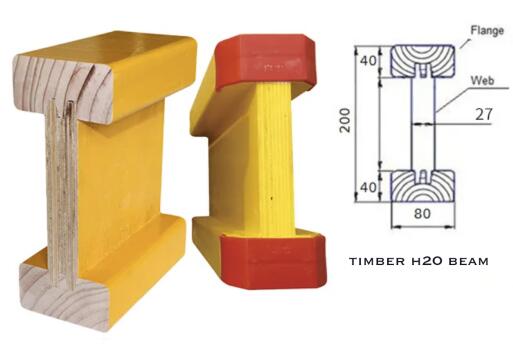

H20 Timber Beam

1. Carpentry word beam is an important part in the international common building formwork system, it has the features of light weight, high strength, good straightness, not easy to deform, water and acid and alkali resistant surface, etc.
2. It can be widely used in many kinds of formwork systems such as horizontal formwork system, vertical formwork system (wall formwork, column formwork, hydraulic climbing formwork, etc.), variable arc formwork system and anisotropic formwork.
3. The carpentry beam straight wall formwork is a loading and unloading formwork, which is easy to assemble, and can be assembled into various sizes of formwork in a certain range and degree, and is flexible in application. Template rigidity is big, it is convenient to connect length and height, and the highest template can be poured more than ten metres at a time. Because of the light quality of the template material, the whole board is much lighter than the steel template.
4. Systems with a high degree of standardisation of product components, good reusability, in line with the requirements of environmental protection.

Flange: Finnish Spruce Solid Wood for Flange

Web: 27mm Spruce (birch poplar plywood)

Characteristics:
Weight (Im) -4,6 (5) kg
Shearing force Q-11 kN
Bending moment M- 5 kNm

Weather-resistant coating
Polyurethane adhesive, grade D4
Plastic caps

Any length (1,45 - 6m)
Delivery to your port

Dimensions & Tolerances

Technical Specifications

The values of the section modulus and the geometrical moment of inertia apply to new or used concrete formwork beams. An analogously increased factor of safety needs to be added for severely worn beams.

Standard sizes
Length: 5900, 4900, 4500, 3900, 3600, 3300, 2900, 2650,2450, 1950 mm
Height: 200 mm
Width: 80mm

Weight
Per linear meter: 4.7 kg
